ZALMAN 1200W ZM1200-ARX

אחריות: 60 חודשים

זמן אספקה: 3 ימי עסקים

מק"ט / דגם: ZM1200-ARX

מחיר משלוח: חינם!

~~2,000 ₪~~

1,595 ₪

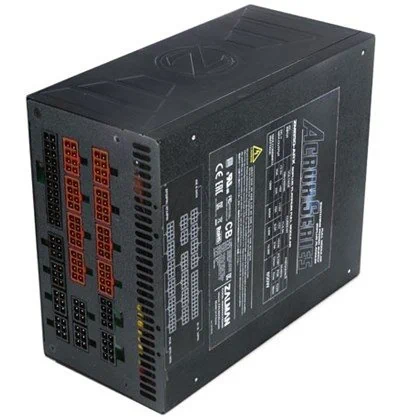

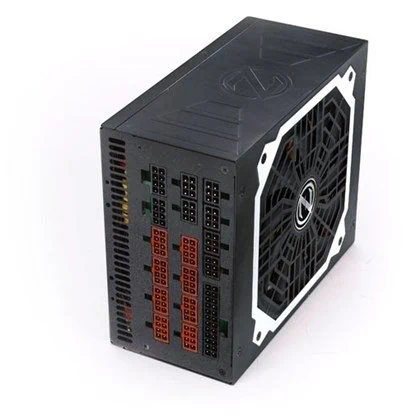

ZALMAN 1200W ZM1200-ARX 80PLUS PLATINUM POWER SUPPLY

Modular DC Cable

High quality components

High quality made in Japan 105°C capacitor guarantees Stability at high temperatures, frequencies
and currents.

High quality components

Powerful and highly reliable DC-DC module

Active PFC

Built-in Active PFC circuit provides high power factor and efficiency

Single Rail +12V DC output

Single +12V DC output design for stabilized voltage supply

Secondary Protection IC

Heavy-duty protection circuitry of Over Current, Over Power, Over Voltage, Under Voltage, Over Temperature and Short-Circuit Protection.

Modular cable type

Neatly organized DC output modular cable help to increase air flow inside the case.

Ultra quiet 135mm for smart cooling

Smart Fan control system optimizes thermal control while minimizing noise levels.

Output Power Cable Specifications

International Safety and EMC Certifications

Electrical & Physical Characteristics

AC Input Range	Voltage	100 ~ 240VAC			Vout	Output Load Rating			Combined Power
	Frequency	50Hz ~ 60Hz				Imin	Imax	Ipeak
AC Input Current	100 ~ 240VAC	12.6-6A/12-6A(WSA Only)			+3.3V	0.1A	25A		120W	1200W
					+5V	0.2A	22A
PFC Type	Active PFC				+12V	0.2A	100A		996W
Power Factor Correction	Max 99%				-12V	0.0A	0.3A		3.6W
Inrush Current Limit (@ Cold Start at 25℃)	115VAC	Max 50A			+5VSB	0.0A	2.5A		12.5W
	240VAC				Ambient Temperature
Efficiency	Max 94% @230VAC, Typical load				Operation		0 ~ +40°C
DC Output Voltage Regulation	Vout	Regulation Range		At Full Load	Storage		-20 ~ +70°C
	+3.3VDC	±5%	+3.14 ~ +3.47V		Ambient Humidity
	+5VDC	±5%	+4.75 ~ +5.25V		Operation		5% ~ 95% RH
	+12VDC	±5%	+11.4 ~ +12.6V		Storage		5% ~ 95% RH
	-12VDC	±10%	-10.8 ~ -13.0V		Dimensions		180(L)150(W)86(H)mm
	+5VSB	±5%	+4.75 ~ +5.25V		Weight		3.1kg
DC Output Ripple & Noise	Vout	Standard Range		At Full Load	Protection Funtions
	+3.3VDC	50mV			Over-Current Protection(OCP)
	+5VDC	50mV			Over-Voltage Protection(OVP)
	+12VDC	120mV			Under-Voltage Protection(UVP)
	-12VDC	120mV			Short-Cicuit Protection(SCP)
	+5VSB	50mV			Over-Power Protection(OPP)
					Over-Temperature Protection(OTP)
