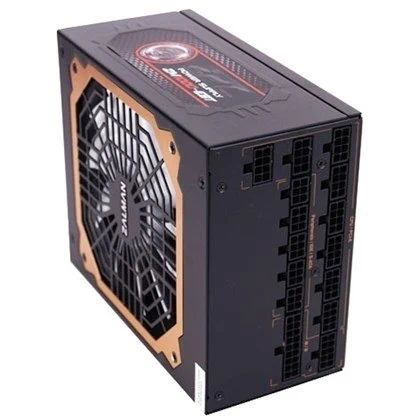

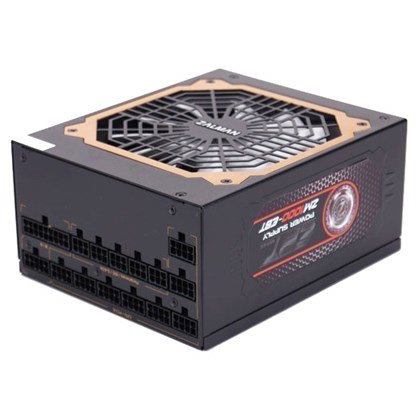

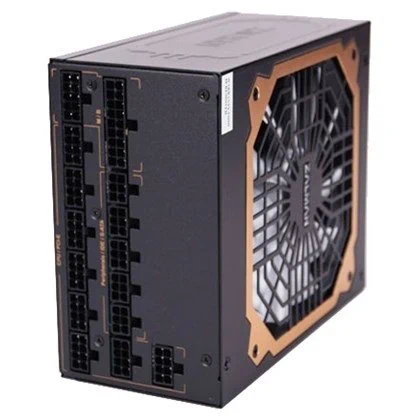

ZM1000EBT
|
SPECIFICATIONS
- Voltage Required: AC 115/230 V
- Input Voltage Range: AC 100 - 240 V
- Output Voltage: +3.3, +5, ±12 V
- Power Capacity: 1000 Watt
- Power Provided: 1000 Watt
- Frequency Required: 50 - 60 Hz
- Efficiency: 92%
- Specification Compliance: ATX12V 2.3/ EPS12V 2.92
- 80 PLUS Certification: 80 PLUS Gold
Power Output Connectors Details:
- 1 x power 24 pin ATX with detachable 4 pin section
- 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section
- 1 x power 8 pin EPS12V
- 6 x 8 pin PCI Express power with detachable 2 pin section
- 12 x 15 pin Serial ATA power
- 8 x 4 pin internal power
- 1 x 4 pin mini-power connector
Output Current:
- +3.3V - 25 A / 0 A
- +5V - 25 A / 0 A
- +12V - 83.4 A / 0 A
- -12V - 0.3 A / 0 A
- +5VSB - 4 A / 0 A
